Model Number : K-TEK-A343-TB-MDT
Payment Terms : Full payment in advance, Western Union, T/T, Paypal
Place of Origin : Shenzhen, China
Packaging Details : Each keyboard to one box, several boxes to one carton.
Delivery Time : ASAP Within 2 weeks upon payment confirmed
Supply Ability : 3000psc/month
Brand Name : IKB-MKB
Certification : CE, FCC, ROHS, IP65, IP68, ISO 9001-2015
MOQ : 1pc
key size : 14.0mm x 14.0mm for normal keys
key travel : 2.0mm
easy clean : Yes
direct washable : Yes
trackball : 38.1mm (1.5’) diameter
switch life : more than 10 million of operations

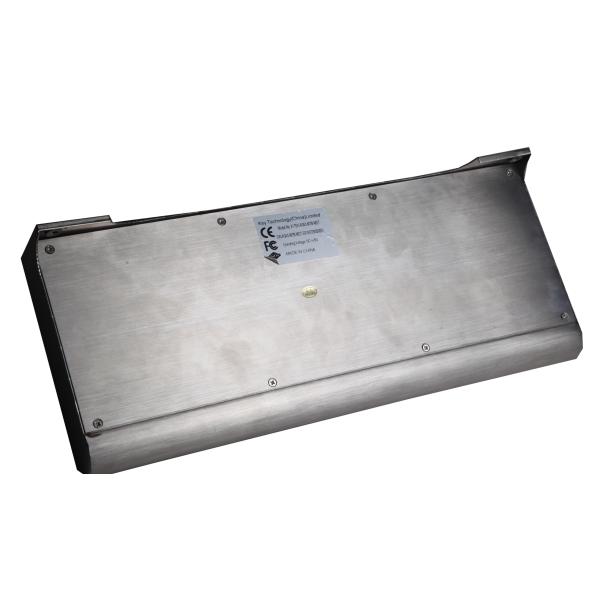

IP65 Explosion Proof 38mm Trackball Stainless Kiosk Keyboard Wall Mounted Desktop Keyboard
APPLICATIONS:
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
Description: 69 keys compact format IP65 static vandal proof stainless steel industrial keyboard with 38.0mm trackball module, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, keyboard can be hinged down for wall mounting, mountable DESK TOP VERSION.
Special Features:
1. IP68 dynamic trackball module with direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
2. 69 keys compact format IP65 dynamic vandal proof stainless steel industrial keyboard
3. with IP68 dynamic rated washable 38.0mm stainless steel
4. industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely
good tactile feeling for fast and accurate data input without any noise
5. 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, keyboard
can be hinged down for wall mounting, Mountable DESK TOP VERSION
6. Which is good for outdoor application with direct rain and very harsh environments with humidity, much
dynamic water, oil, dirt, salt mist etc, Which is good for outdoor application with direct rain and very harsh
environments with humidity, much dynamic water, oil, dirt, salt mist etc
7. CE, FCC, ROHS
8. USB, PS2
9. any layout is available without additional cost.
MECHANICAL DATA:
| Actuator/keys | 69 keys, super quality SUS304 brushed stainless steel |
| Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
| Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar |
| Key travel | 2.0mm |
| Actuation Force | 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) |
| Switch life | more than 10 million of operations |
| Stainless Steel Housing | full 1.2mm thickness super quality brushed stainless steel |
| Tracker ball | 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball |
| G.W. | 3.0KGs |
| Dimensions | 403.0mm x 165.0mm x 37.0mm (L x W x H) |
ELECTRICAL DATA:
| Supply Voltage | +5V DC +/-5% |
| Current Rating | appr. 30mA (non-backlight) |
| EMC Standard | It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004 |
| EMI | EN 55022: 2010 |
| EMS | EN 55024:2010 |
| Lifespan | > 5 years |
| Switch Contact Material | Carbon-on-Gold key switch technology PCB |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed) |
